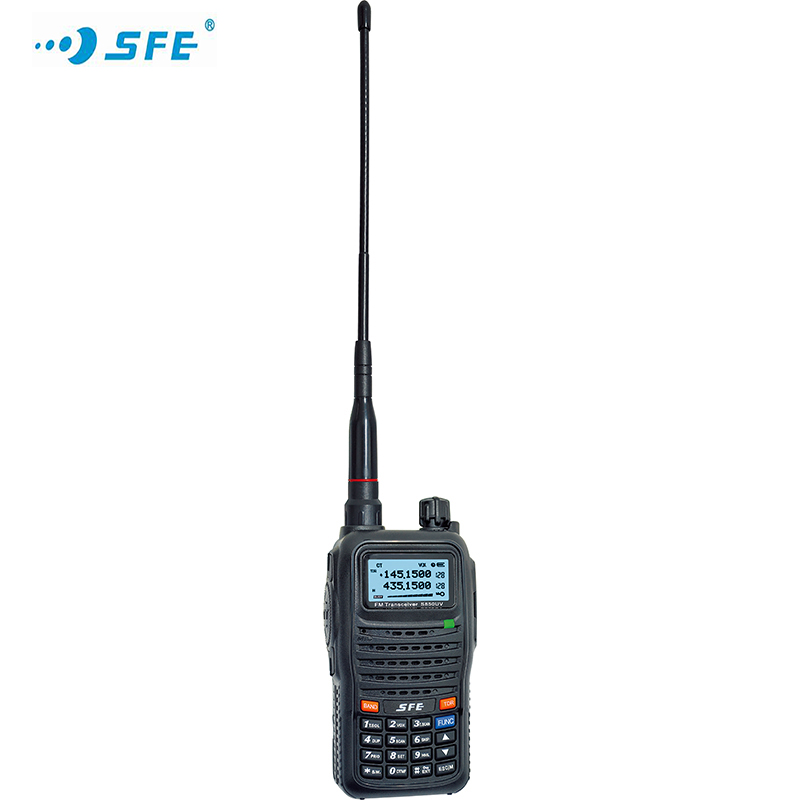

S850UV Analog Two-way Radio

S850UV Analog Two-way Radio

Product Introduction:

S850UV is a dual-band radio with compact and rugged construction design and applied with conventional circuit design for both RX and TX to obtain the optimal performance and anti-interference ability, to be used in noisy environments and tough conditions. Its advanced audio technology ensures the clarity of calls by offering with powerful and superb clear audio output. Large battery capacity 2200mAh and battery save function ensure long time operation for more than 20 hours according to duty cycle 5-5-90. S850UV is also designed with rainproof, dustproof and shatterproof feature which has been applied in various harsh environment including forestry, mining, logistics, railway and other industries.

Product Dimension:

(Height*Width*Depth) excluding antenna
53*28*104mm

Product Features:

1. 256 Channels

2. Output Power 5W/4W

3. Operation Mode: UU, UV, VU, VV

4. Channel Steps: 2.5/6.25/10/12.5/15/20/25/30/50KHz

5. Wide/Narrow Bandwidth Selective:25KHz/20KHz/12.5KHz

6. ANI Code(DTMF&5TONE) and PTT ID

7. Squelch Tail Elimination Function

8. VOX Function

9. Three-color Backlight Display

10. Emergency Alert Function

11. TOT(Time Out Timer)

12.Auto Battery Save

13. Busy Channel Lockout(BCL)

14.PC Programming

15.FM Radio 76-108MHz

Specifications:

Application Scenarios:

Construction, airport, seaports, security guard, property management, shopping mall, hotel, warehouse, logistics, education, retail, manufacturing, institution, surveying and mapping, hospitality, restaurant, outdoor activity and school etc.
