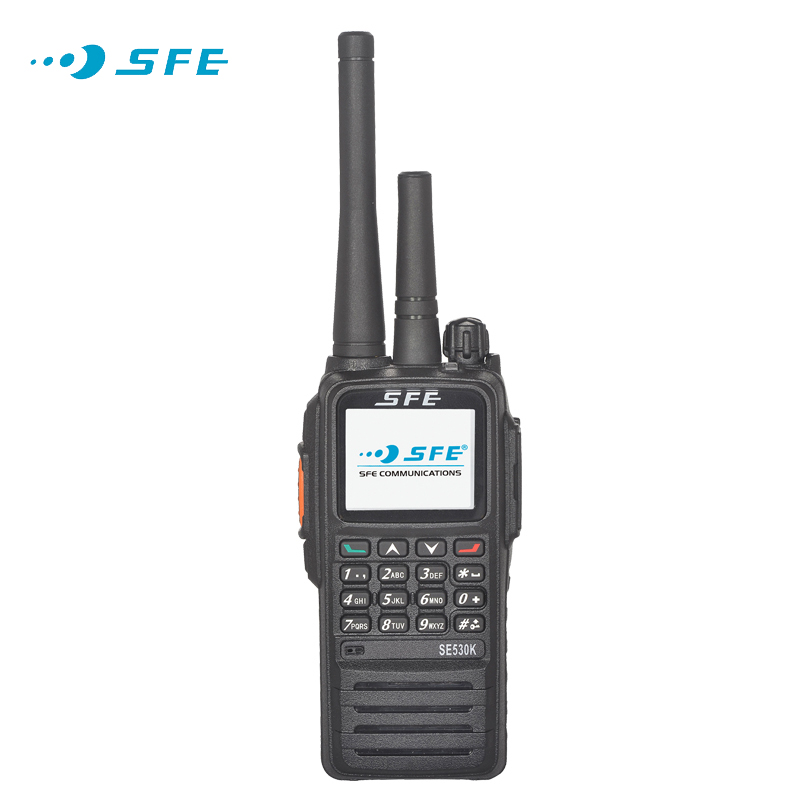

SE530K Dual-mode Radio
SE530K Dual-mode Two-way Radio
Production Introduction:
SE530K dual mode radio integrates PoC(press-to-talk over cellular LTE/WCDMA/GSM) and analog to provide public network, private network and mixed networks utilizing broad band and narrow bandwidth convergence technologies.
The PoC network is based on GSM 2G, WCDMA 3G, and LTE 4G network standards, which realize cluster communication in a wide area without distance limitation and ensure instant communication. It has multiple call modes such as group call, single call and good friends call, which can easily cope with various communication scenarios. The powerful functional trunking system adopts an exclusive management platform, which is safe and reliable, ensuring communication safety. In addition, the cluster dispatching station has a visual dispatch function, through activating GPS function, the administrator can track the location details and movement trajectories of terminal users on the APP, making cluster dispatching more accurate. Through the signal network of local sim card network carrier from local market, the radio device could cover the whole country even worldwide.
The analog part is compatible with existing conventional analogue radios. Through the repeater/gateway mode from this terminal, the existing conventional analogue radios could work with PoC network radios. Through two terminals working as gateway bridge, UHF400-480MHz analogue radios could work with VHF136-174MHz analogue radios too.
Product Dimension:
(Height*Width*Depth) excluding antenna 116mm*52mm*31mm
Product Features:
1 | 1.8-inch color screen, different backlight modes optional |
2 | Dual-mode radio support LTE 4G/WCDMA 3G/GSM 2G and analogue UHF400-480MHz/VHF136-174MHz etc. |
3 | Dual antenna, dual mode and dual standby |
4 | PoC mode for worldwide communication |
5 | Analog mode with powerful output 5W |
6 | 4 working modes: dual work, PoC network mode, analog mode, repeater/gateway mode |
7 | 2G/3G/4G network can be manually/automatically switched for PoC network mode |
8 | GPS positioning function for PoC mode |
9 | Support emergency alarm(SOS) for PoC mode |
10 | REAL-PTT platform for PoC mode |
11 | Support group call, individual call |
12 | Displaying the user name and group name for PoC mode, channel name and frequencies for analog mode |
13 | Voice Code 4K/8K optional |
14 | Signal strength Indicator |
15 | Current battery life indicator |
16 | Time and date calibration |
17 | Key lock/unlock function |
18 | Li-ion battery capacity 2600mAh/3500mAh optional |
Specifications:
General Specifications | |
Operating Voltage | DC：7.4V±10% |
Battery Capacity | 2600mAh/3500mAh(Li-lon)(optional) |
Operating Temperature | -30℃～+60℃ |
Antenna Impedance | 50Ω |
Weight | 265g |
Dimension | 116mm*52mm*31mm |
Analog Part | ||
Frequency Range | 136-174MHz/220-260MHz/350-390MHz/ 400-480Mhz/450-520MHz etc. | |
Channel Number | 128CH | |
Channel Spacing | 12.5KHz/25KHz | |
Frequency Error | ±2.5ppm | |
Receiver (RX) | ||
Bandwidth | 25KHz | 12.5KHz |
RX Sensitivity | ≤ 0.25uV | ≤ 0.35uV |
Intermodulation | ≥65dB | ≥60dB |
Adjacent Channel Selectivity | ≥70dB | ≥70dB |
Spurious Response Rejection | ≥45dB | ≥36dB |
Hum and Noise | ≥40dB | ≥40dB |
Audio Response | (+)1-3dB(0.3-3KHz) | (+)1-3dB(0.3-3KHz) |
Audio Distortion | ≤ 5% | |
Transmitter (TX) | ||
Bandwidth | 25KHz | 12.5KHz |
Output Power | VHF:5W/1W UHF:4W/1W | |
Analog Modulation | 16KφF3E | 11KφF3E |
Modulation Limit | ±5.0 | ±2.5 |
Spurious Emissions | ≥40dB | ≥36dB |
Adjacent Channel Power | ≥70dB | ≥60dB |
FM Hum and Noise | ≥45dB | ≥45dB |
Audio Response | (+)1-3dB(0.3-3KHz) | (+)1-3dB(0.3-3KHz) |
Audio Distortion | ≤5% | |
Frequency Stability | ±2.5ppm | |
POC Part | |
Frequency Range | B1/B3/B5/B7/B8/B20@FDD LTE B38/B40/B41@TDD LTE B1/B5/B5@WCDMA B3/B8@GSM |
B1/B2/B3/B4/B5/B7/B8/B28@FDD LTE B40@TDD LTE B1/B2/B5/B8@WCDMA B2/B3/B5/B5@GSM | |
B2/B4/B5/B12/B13/B14/B66/B71@FDD LTE B2/B4/B5@WCDMA | |
Operating System | LINUX |
GPS | Yes |
SOS | Yes |
Working Mode | Semi-Duplex |
RX Sensitivity | LTE ≤-96dBm(4G) GSM/WCDMA≤-108dBm(2G/3G) ; |
RF Power | 23dBm≤P≤30dBm |
Audio Output | 500mW |
Working Temperature | -20°C - 60°C |
Storage Temperature | -30°C - 80°C |
Application Scenarios:
Construction, airport, seaport, railway station,security guard, property management, shopping mall, hotel, warehouse, logistics, education, retail, manufacturing, institution, surveying and mapping, hospitality, restaurant, school and outdoor activities etc.
