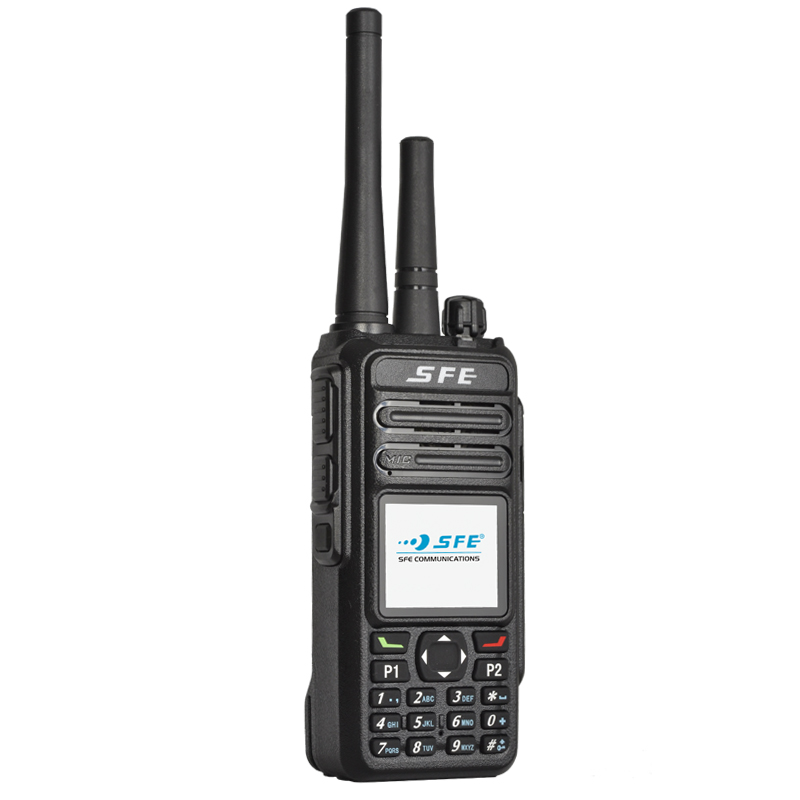

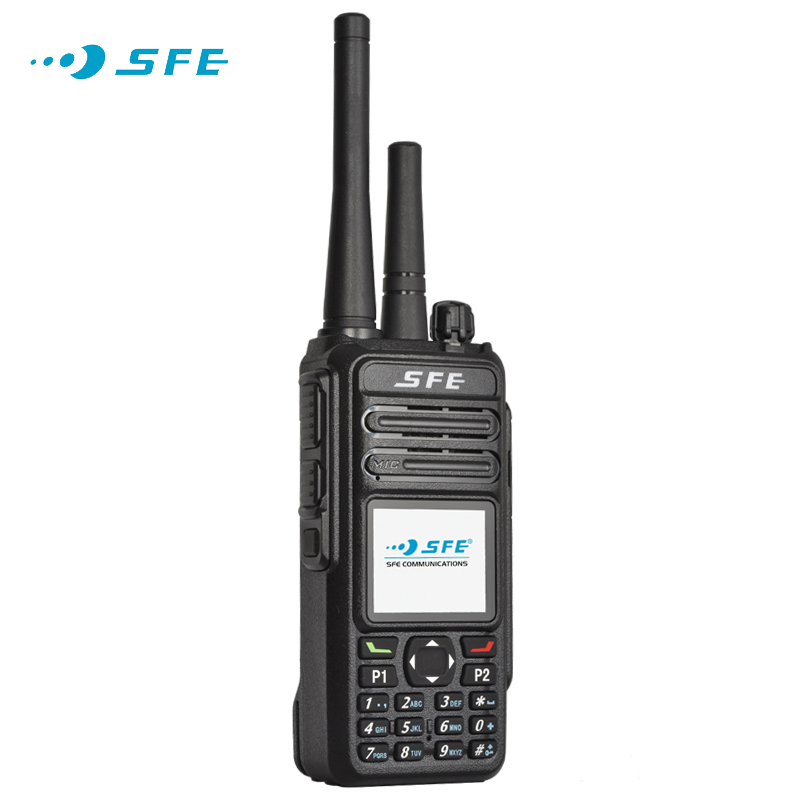

SE820D Multi-mode Radio
SE820D PoC/PMR Multi-mode Radio
Production Introduction:
SE820D multi-mode radio integrates PoC(press-to-talk over cellular LTE/WCDMA/GSM), DMR and analog to provide public network, private network and mixed networks utilizing broad band and narrow bandwidth convergence technologies.
The PoC network is based on GSM 2G, WCDMA 3G, and LTE 4G network standards, which realize cluster communication in a wide area without distance limitation and ensure instant communication. It has multiple call modes such as group call, single call and good friends call, which can easily cope with various communication scenarios. The powerful functional trunking system adopts an exclusive management platform, which is safe and reliable, ensuring communication safety. In addition, the cluster dispatching station has a visual dispatch function, through activating GPS function, the administrator can track the location details and movement trajectories of terminal users on the APP, making cluster dispatching more accurate. Through the signal network of local sim card network carrier from local market, the radio device could cover the whole country even worldwide.
The analog part is compatible with existing conventional analogue radios. The DMR part is compatible with most of the brands such as Motorola, HYT etc. by using same vocoder AMBE++. Through the Repeater/gateway mode of this terminal, the existing digital DMR radios/conventional analogue radios could work with PoC network radios. Through two terminals working as gateway bridge, analogue UHF could work with analog VHF, DMR UHF could work with DMR VHF, analogue UHF/VHF could work with DMR UHF/VHF.
Product Dimension:
(Height*Width*Depth) excluding antenna 120mm*54mm*35mm
Product Features:
1 | 1.8-inch color screen, different backlight modes optional |
2 | Multi-mode radio supports LTE 4G/WCDMA 3G/GSM 2G network and digital/analogue UHF400-480MHz/VHF136-174MHz etc. |
3 | Dual PTT buttons, dual antenna, dual mode and dual Standby |
4 | Worldwide communication |
5 | DMR/Analog mode with powerful output 5W |
6 | 4 working modes: dual work mode, PoC network mode, DMR/Analog mode, repeater/gateway mode |
7 | 2G/3G/4G network can be manually/automatically switched for PoC network mode |
8 | GPS positioning function for PoC mode |
9 | Supports emergency alarm(SOS) for PoC mode |
10 | REAL-PTT platform for PoC mode |
11 | Support group call, individual call |
12 | Displaying the user name and group name for PoC mode, channel name and frequencies for analog mode |
13 | Voice Code 4K/8K optional |
14 | Signal strength Indicator |
15 | Current battery life indicator |
16 | Time and date calibration |
17 | Key lock/unlock function |
18 | Li-ion battery capacity 2600mAh/3500mAh optional |
Specifications:
General Specifications | |
Operating Voltage | DC：7.4V±10% |
Battery Capacity | 2600/3500mAh(Li-lon)(optional) |
Operating Temperature | -30℃～+60℃ |
Antenna Impedance | 50Ω |
Weight | 265g |
Dimension | 120mm*54mm*35mm |
DMR/Analog Part | |
Frequency Range | 136-174MHz/220-260MHz/350-390MHz/ 400-480Mhz/450-520MHz etc. |
Channel Number | 1024CH |
Receiver (RX) | |
Sensitivity | Analog 5% SINAD: 0.20uV Digital 5% BER: 0.20uV |
Adjacent Channel Selectivity | ≥55dB |
Intermodulation | ≥55dB |
Spurious Response Rejection | ≥55dB |
Audio Output | 750mW |
Audio Response | (+)1-3dB(0.3-3KHz) |
Audio Distortion | ≤ 3% |
Hum and Noise | ≥40dB |
Transmitter (TX) | |
Output Power | VHF:5W/1W UHF:4W/1W |
Bandwidth | 12.5KHz |
Modulation Limit | ±2.5@12.5KHz ±5.0@25KHz |
Modulation Distortion | ≤ 3% |
Conducted Spurious Emissions | -36dBm <1GHz -30dBm >1GHz |
Adjacent Channel Power | ≥65dB |
FM Hum and Noise | ≥45dB |
Audio Response | (+)1-3dB(0.3-3KHz) |
Audio Distortion | ≤3% |
Digital Vocodor | AMBE++ |
Frequency Stability | ±0.5ppm |
Analog Modulation | 11KφF3E@12.5KHz 16KφF3E@25KHz |
4FSK Digital Modulation | 12.5KHz Data：7K60F1D/7K60FXD 12.5KHz Voice：7K60F1E/7K60FXE |
Digital Protocol | ETSI TS 102 361-1,-2,-3 |
POC Part | |
Frequency Range | B1/B3/B5/B7/B8/B20@FDD LTE B38/B40/B41@TDD LTE B1/B5/B5@WCDMA B3/B8@GSM |
B1/B2/B3/B4/B5/B7/B8/B28@FDD LTE B40@TDD LTE B1/B2/B5/B8@WCDMA B2/B3/B5/B5@GSM | |
B2/B4/B5/B12/B13/B14/B66/B71@FDD LTE B2/B4/B5@WCDMA | |
Operating System | LINUX |
GPS | Yes |
SOS | Yes |
Working Mode | Semi-Duplex |
RX Sensitivity | LTE ≤-96dBm(4G) GSM/WCDMA≤-108dBm(2G/3G) ; |
RF Power | 23dBm≤P≤30dBm |
Audio Output | 500mW |
Working Temperature | -20°C - 60°C |
Storage Temperature | -30°C - 80°C |
Application Scenarios:
Construction, airport, seaports, railway station, security guard, property management, shopping mall, hotel, warehouse, logistics, education, retail, manufacturing, institution, surveying and mapping, hospitality, restaurant, school, outdoor activities, taxi and vehicle fleet etc.
